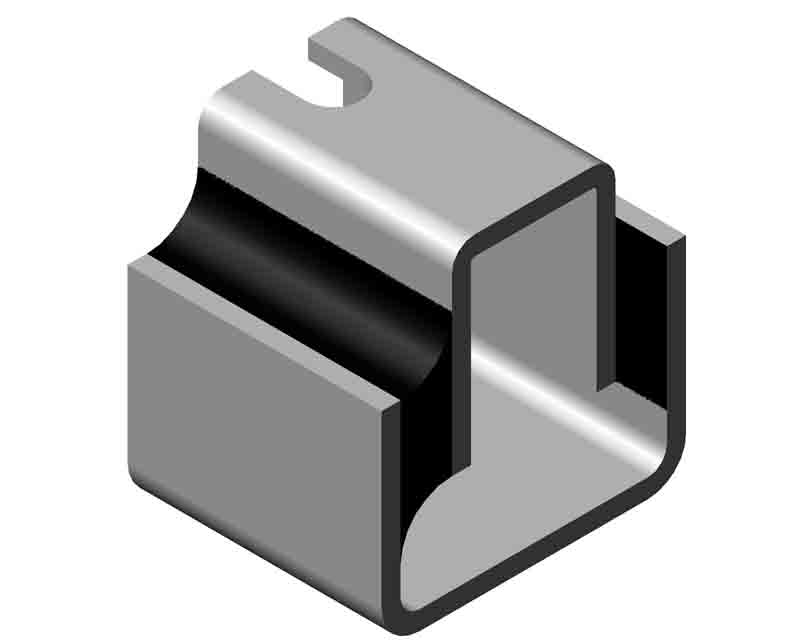

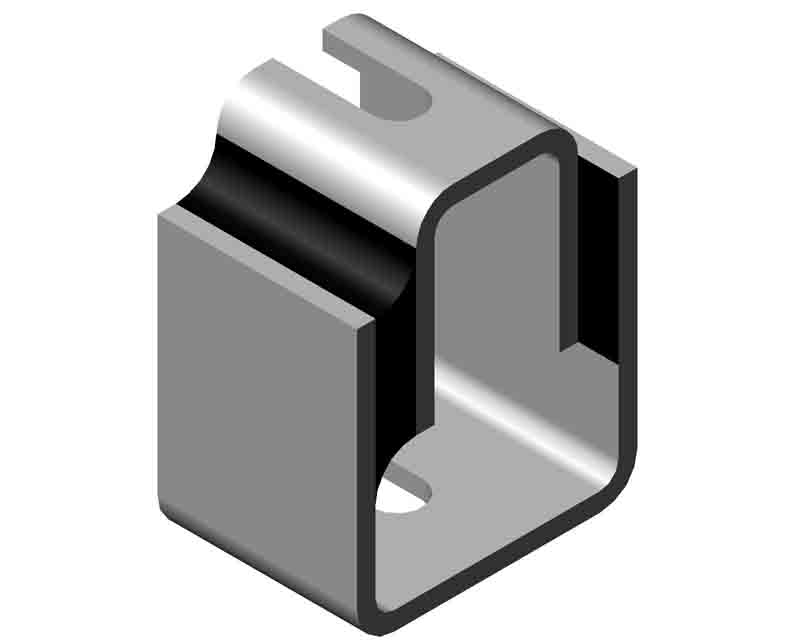

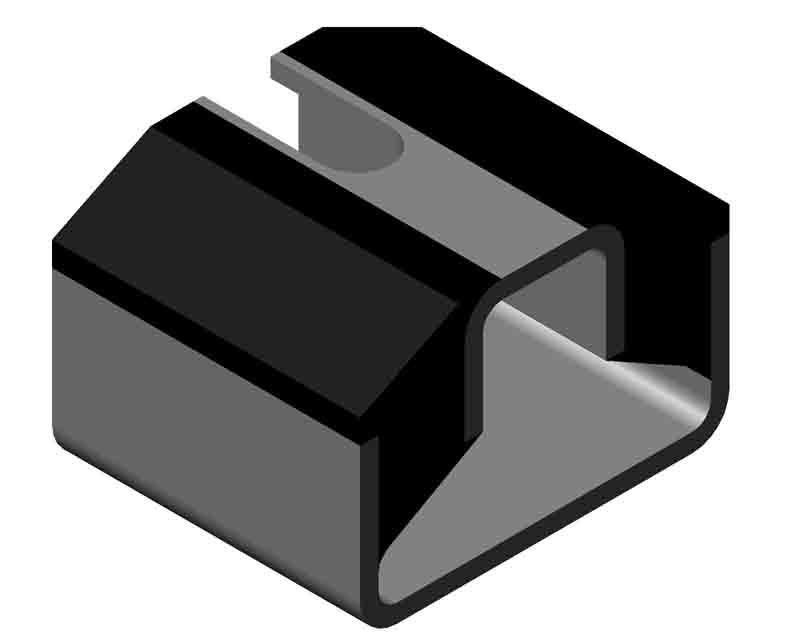

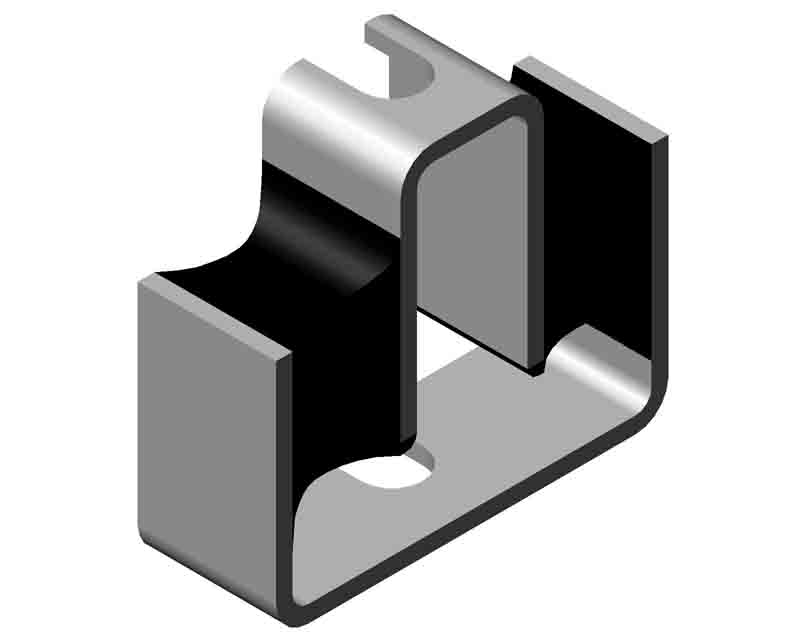

U Shear Mount

DESCRIPTION:

PRTPL manufacture a range of U shear Mounts which can be used for light applications requiring relatively high movement, for example for the protection of electronic equipment or in transit case production. Different designs (U and hole type) are available - please refer to the datasheets for detailed information. Alternatively if you require design and development of a specific device mount, then please contact PRTPL today.

Benefits:

Due to their design,  U shear Mounts can be loaded in any of the three planes. However, they are generally loaded vertically, such that the rubber is loaded in shear allowing for relatively high deflections.  Application examples include the isolation of pumps and fans on stationary equipment.
